Mappings

The Mappings feature provides the capability to translate terms (i.e., class names, attribute names, parameter names, relationship names, relationship attribute names, parameter fields, etc.) used in GENESYS to the specialized language of particular disciplines or stakeholder communities. For instance, for an electrical engineer, the word “item” can be mapped to the word “signal” and the word “link” can be mapped to the word “trace”, etc.

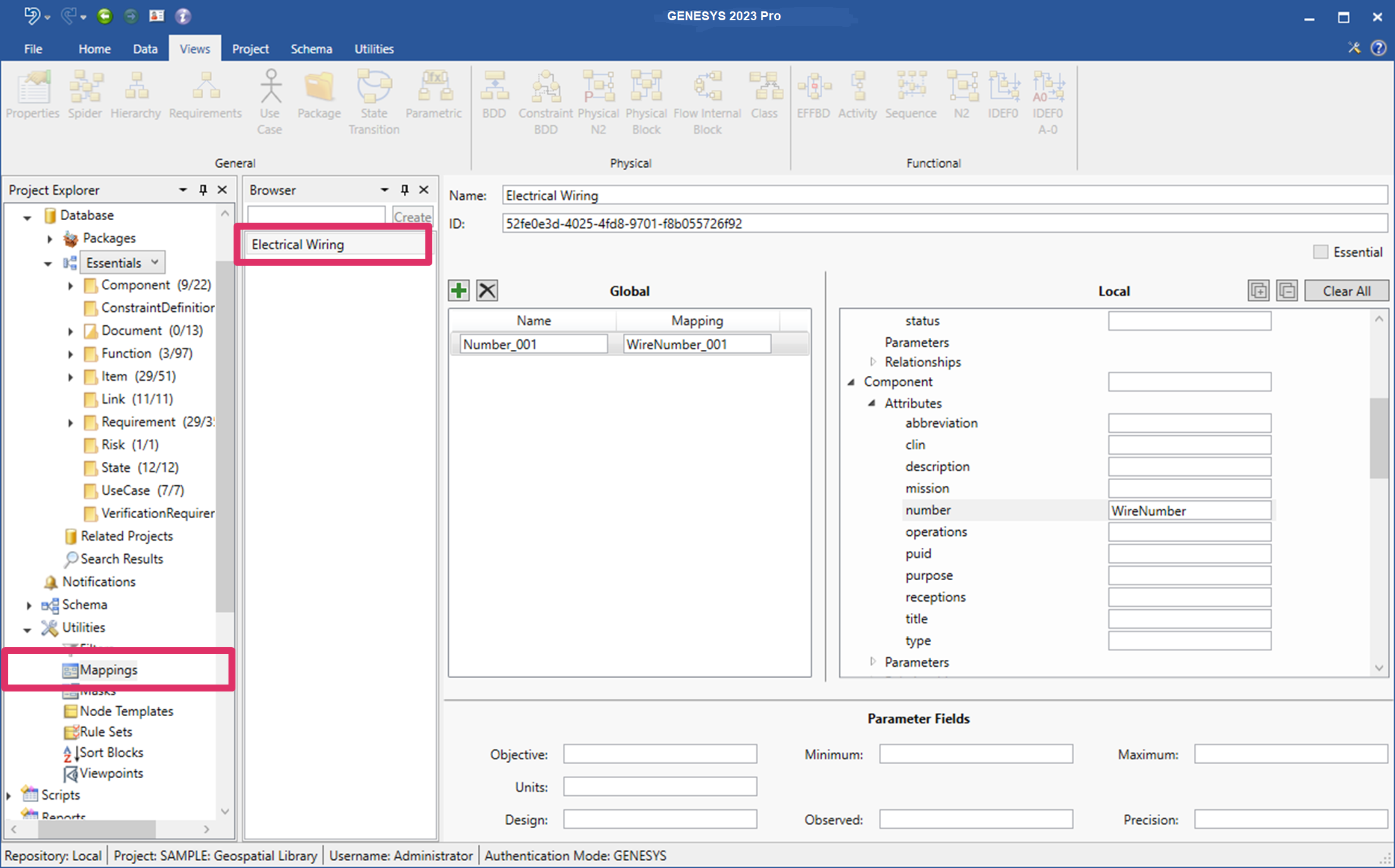

To access the Mappings feature in GENESYS, click the arrow next to Utilities in the Project Explorer pane and then select Mappings.



The available mappings display in the Browser pane.





Mapping Properties

Mappings contain the following two properties:



• Name
• ID - must be unique

Mapping Commands

Mapping commands include:



• Create Mapping
• Create Global or Local Mapping
• Duplicate Mapping
• Delete Mapping
• Delete Mapping Item



NOTE:

Mappings can be imported and exported into other projects.
