Insert Replicate

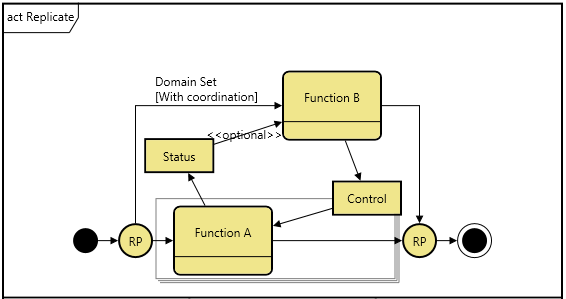

The Insert Replicate command, accessed in the diagram Toolbox, inserts a Replicate construct at the insertion point for an Activity diagram, a FFBD, or an EFFBD.

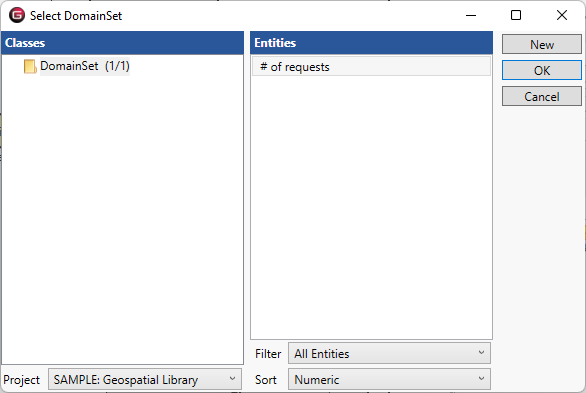

This command is available either from the ribbon structure or by dragging the replicate construct from the diagram Toolbox to the desired insertion point. GENESYS will prompt you to select or create a domain set for the Replicate construct.





If you insert by using the ribbon commands, GENESYS will insert based upon your current selection. If a node or construct is selected, GENESYS will insert before the selected object. If a branch is selected, GENESYS will insert at the end of the branch. If nothing is selected, GENESYS will insert at the end of the main branch.
