Insert Iterate

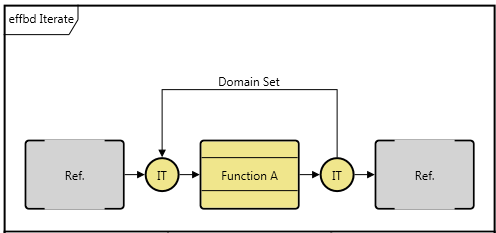

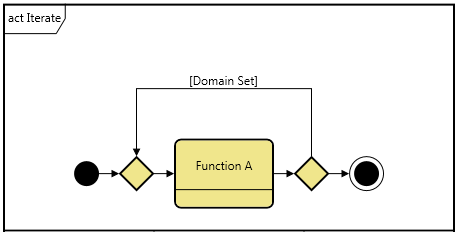

The Insert Iterate command inserts an iterate construct at the insertion point for an Activity diagram, a FFBD, or an EFFBD.







This command is available either from the Insert submenu of the right-click context menu or by dragging the Iterate construct from the Insert tab of the diagram Toolbox to the desired insertion point. GENESYS will prompt you to select or create a domain set for the iterate construct.





If you insert by using the ribbon commands, GENESYS will insert based upon your current selection. If a node or construct is selected, GENESYS will insert before the selected object. If a branch is selected, GENESYS will insert at the end of the branch. If nothing is selected, GENESYS will insert at the end of the main branch.
