Edit Annotation

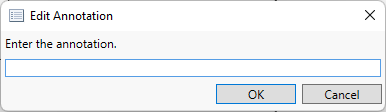

The Edit Annotation command allows you to specify the label for a branch or a loop condition (the criteria for staying within a loop construct) on an Activity diagram,  FFBD, or EFFBD. Annotations are simply informative guides to the modeler and customer. They do not have any modeling rigor but do add richness and context.





Annotations are simple, single-line labels.



NOTE:

Specifying Exit Conditions Whereas annotations have no model implications or rigor, the labels displayed on function exit branches are actual edit conditions. To edit the exit conditions for an entity, use the Edit Exit Conditions command.



NOTE:

Double-clicking a branch or a loop construct is a shortcut to edit the annotation.
