Edit Triggering Events

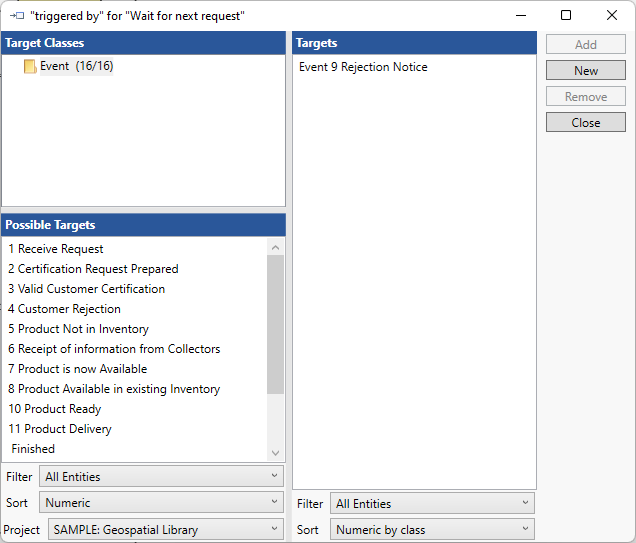

The Edit Triggering Events or Events command, accessed on the Diagram ribbon, allows you to manipulate the collection of events that trigger the current transition. The command opens a target window on the triggered by relation from which you can add or remove events as desired.







NOTE:

If you simply wish to add an event to a transition, often this can be accomplished most quickly by dragging and dropping from the diagram Toolbox - either by dragging the Events construct from the Constructs tab or by dragging the specific event to be added from the Key Entities tab.
