Edit States

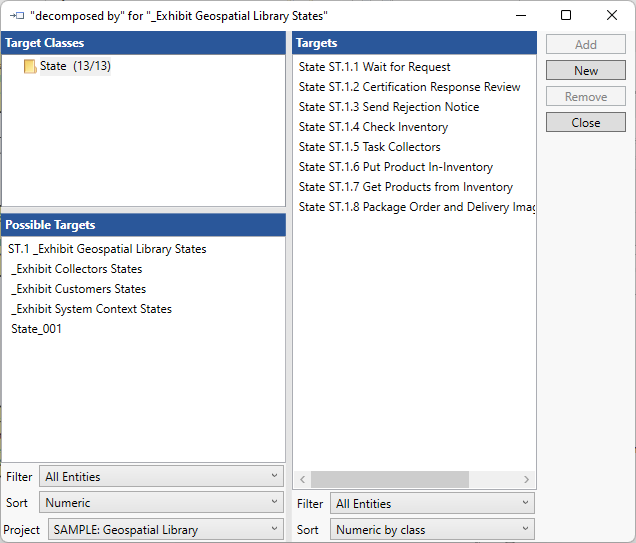

The Edit States or States command, accessed in the diagram Toolbox, enables you to specify the child state for the selected state. The command opens a target window on the built from relation from which you can add or remove states as desired.







NOTE:

Adding a single state can often be accomplished most quickly by dragging and dropping from the diagram Toolbox - either by dragging the States construct from the Insert tab constructs, or by dragging the specific item to be added from the Key Entities icon.
