Edit Mechanisms

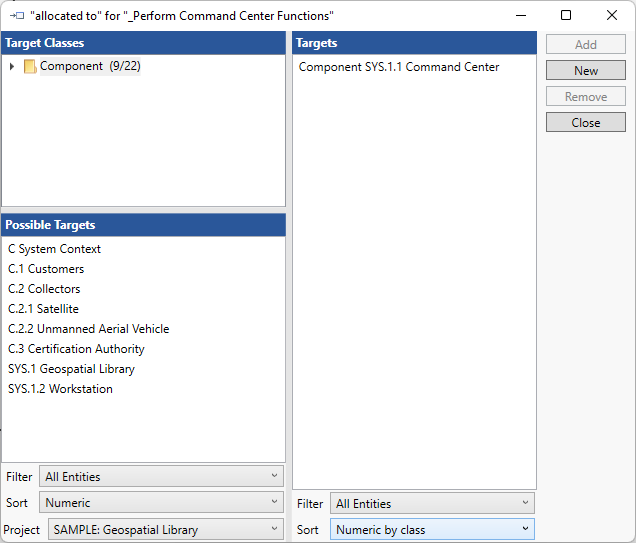

The Edit Mechanisms or Mechanisms command allows you to specify the component that performs the currently selected function. The command opens a target window on the allocated relation from which you can add or remove components as desired.







NOTE:

Allocating a single function can often be accomplished most quickly by using a drag-drop action from the diagram Toolbox - either by dragging the Mechanism construct from the Insert tab, or by dragging the specific item to be added from the Key Entities tab.
