Edit Exit Transitions

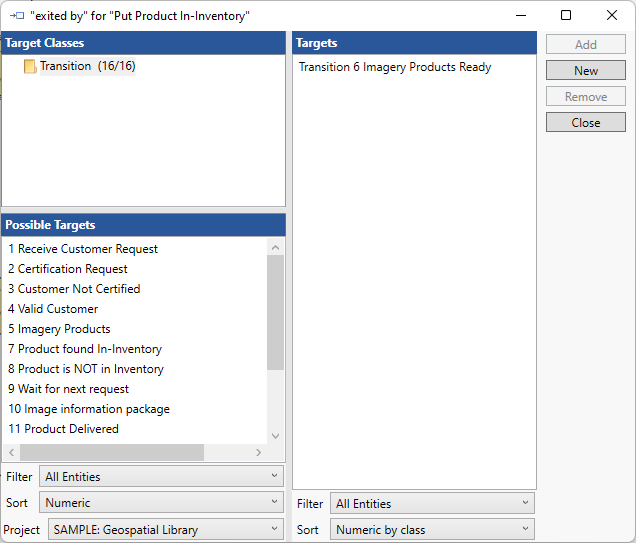

The Edit Exit Transitions command, accessed in the diagram Toolbox or on the right-click context menu, allows you to manipulate the collection of transitions exiting the current state. The command opens a target window on the exited by relation from which you can add or remove transitions as desired.







NOTE:

If you simply wish to add a transition to a state, often this can be accomplished most quickly by dragging and dropping from the diagram Toolbox - either by dragging the Exit Transitions construct from the Constructs tab or by dragging the specific transition to be added from the Key Entities tab.
