Edit Entry Transitions

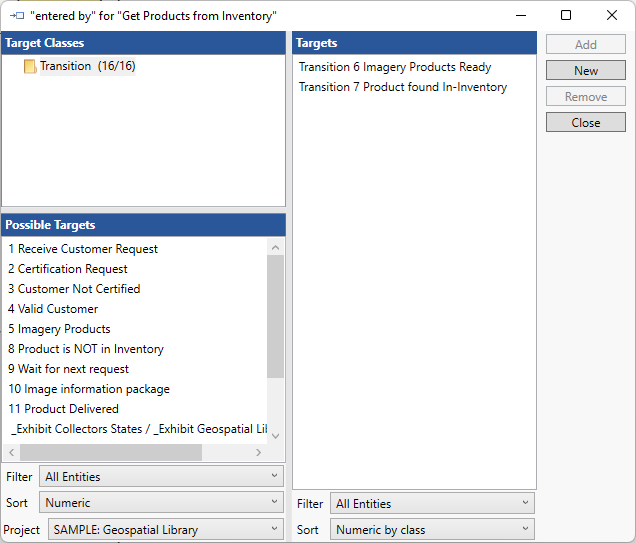

The Edit Entry Transitions command, accessed in the diagram Toolbox or on the right-click context menu, enables you to manipulate the collection of transitions entering the current state. The command opens a target window on the entered by relation from which you can add or remove transitions as desired.







NOTE:

If you simply wish to add a transition to a state, often this can be accomplished most quickly by using a drag-drop action from the diagram Toolbox - either by dragging the Entry Transitions construct from the Constructs tab or by dragging the specific transition to be added from the Key Entities tab.
