Remove Relation

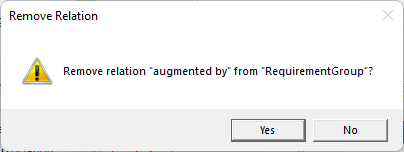

The Remove Relation command, accessed on the right-click context menu when editing the schema, removes the selected relation from the class and all of its subclasses. The relation is still part of the project schema but is no longer a valid relation for this class.



To remove a relation, you must remove it from the class in which it is specified (as opposed to attempting to remove an inherited relation from a subclass). In addition, if the relation has target classes defined, GENESYS will not automatically remove the complementary relation from the target classes.
