New Node Template

The New Node Template command defines a new node template to use for representing objects on diagrams.



To create a new node template:



1.  In Project Explorer under Utilities, right-click Node Templates and select New Node Template. or enter a name for the new node template in the box at the top of the Browser pane and cick Create. Alternatively, right-click in the Browser pane and select New Node Template from the drop-down menu that appears. You can also access this command on the Data ribbon.

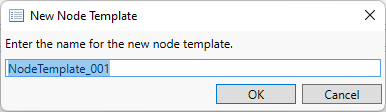

2. Enter a name for the node template in the window that displays. Node template names must be unique.





The new node template appears in the pane.



The new node template is initialized with one predefined field - the name of the entity.
